Fully full Dino brake master cylinder rebuild kit.
Comprehensive kit to rebuild a worn out master cylinder. Includes a brand new housing. Just transfer your lever arm, pushrod and top cover. Everything else is replaced with parts from this kit.

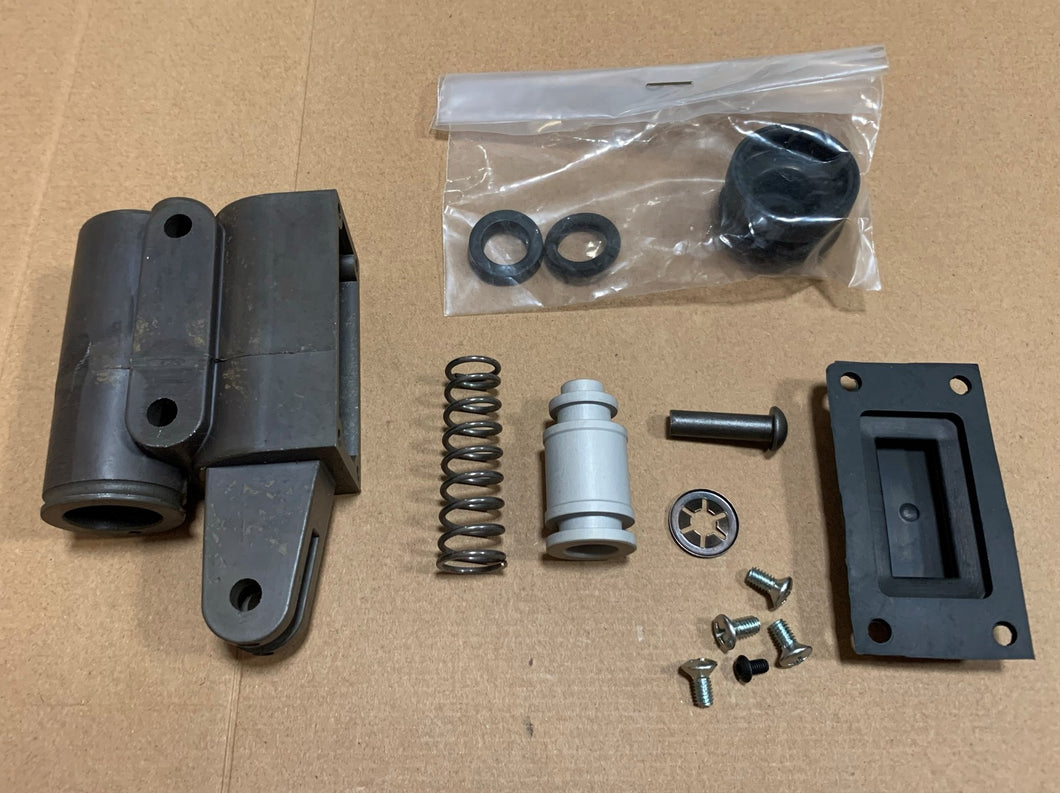

Kit contents
- Master cylinder housing
- piston
- return spring
- pistons seals (2)
- Dust seal
- Pivot pin and retaining clip
- piston retaining screw
- top cover fasteners (4)
- reservoir bellows
Dino have used this same cylinder with the retangular reservoir from the last 80's to current day.
Bore nominally 19mm or 0.750"
Distance between 6mm mounting bolts 43.0mm
